NEW MEGREZ 72 DDG 數位顯示讀數 (最新)

Photography | Bird-watching | Star observation

攝影、賞鳥、觀星

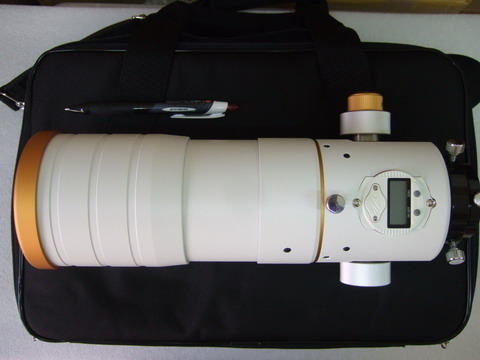

New DDG version comes with digital display guage, temperature and humidity display, soft case
數位顯示讀數,可顯示調焦指標,日期,
時間,溫度,濕度,等資料


MEGREZ 72ED F/6 OTA
& K mount on tripod 1.25" diagonal, 2.5mm eyepiece (另購 optional)

A Review of the William Optics Zenithstar 70ED f:/6.1 refractor by Steve Cox

Last 1 set in stock 最 後 一 台


DC adapter for clamping the eyepiece, afocal photography
DC 接駁架 箍目鏡作 afocal 攝影


Stylish design with 10:1 microfocuser, 1.25" eyepiece holder, camera angle adjuster, tripod attachment

DDG = 數位顯示讀數
鏡筒內配置七層消光環:

7層消光環有效消除筒內漫射,增加成像清晰度

STOCK AVAILABLE $4280


MEGREZ 72DDG OTA with thermometer


MEGREZ 72 OTA OPTIONAL ACCESSORIES


WO 1.25" carbon fibre Dielectric diagonal, $540.
有現貨 Stock available

2" photo adapter with 42mm T2 thread 2寸攝影套管 HK$350

Below photos taken with M70 OTA + Philips web cam, focal length=430mm
以 下 影 像 用 M72 OTA拍 攝, 配合 Philips web cam, 焦距=430mm


1st magnitude star image, behind focal plane

1st magnitude star image, at focal plane


1st magnitude star image, in front of focal plane


Window 1000m away

repeater tower 3km away

ICC Sky crane 4km away

Wall picture on platform of Cullinan, Kowloon Station 4km away


Tates Cairn Radar Station 6km away


Tates Cairn Radar Station 6km away with 2x barlow f.l.780mm


Specification

Optical system
光學系統

二片式低色 散 FD APO
(FPL-51 Air Spaced, Japan made Ohara glass)

Effective aperture
有效口徑

72mm

Coating
光學鍍膜

Super Multi-Coated with a special super-high transmission coating (STM Coating) on all surfaces.
多層Super Multi-coating 高 透 光 超 級 鍍 膜 於所有玻璃表面

Focal length
焦  距

432mm(f/6)

Focuser travel distance
對焦座伸長量

81mm (3.2")

Digital Display Guage

Focus Time, date, temperature, humidity

Resolution
解 像 力

1.58 arc second
1.58秒角

Limiting magnitude
極限星等

11.1等

Internal tube baffling
筒內消光環

2 layer of baffling
2 層消光環


Tube surface handling
鏡筒表面處理

5 layer Dupont coating
5 層杜邦 (Dupont) 烤漆
Tube length
鏡筒長度

" ( 300mm) 遮光罩後縮狀態
" ( 360mm) 遮光罩前伸狀態

Weight 重  量

2.6kg (5.7lbs)

Crawford focuser 卡佛對焦座
10:1 Feature touch focus 羽毛調焦

FLT98 碳纖鏡筒,FPL53日本ED鏡片,強化天梯牙調焦座,人手制造,100%檢查2009 S&T雜誌熱賣產品


FLT98 triplet Carbon Fiber tube and best lens WO ever made is now available. Merely 3.9kg weight, 500mm long, really a grab and go scope.

DDG adjustment manual

羽毛調焦 + 數位顯示對焦座調整說明

Discontinued




Carbon fibre tube, strength focuser 10:1 microfocuser, camera angle adjuster, mounting rings



Matte dew shield, knife-edge baffling


2.5" Linear power focuser, focus lock, 2">1.25" eyepiece holde




DISCOTINUED 已 停 產

FPL-53 ED triplet Apochromat

Lens Japan made



ZenithStar SD Doublet APO, 66mm, f. 5/9, BLUE color, ideal to piggyback on your Meade SCT .
PROMOTIONAL PRICE: only limited quantity at this price.

A small-aperture, extremely-portable APO scope at a great price ZSSD Doublet APO is here!
Sharp to the edge and color free, no other scope will beat it's price/quality ratio! Excellent mechanics and fit and finish, Crayford 2-speed fine focuser, super-high transmission multi-coating, aluminum case. Fast focal ratio makes it your ideal fast set-up for travel astrophotography or piggybacking.




ZS66SD OTA, only 300mm when fully retracted


Discontinued| Silky smooth 10:1 microfocuser
